| Power | L*W*H(mm) | Lumen/Power | Item No |
|---|---|---|---|
| Low | 1176*40*90 | 2000lm/20W | 928S.P120W |
| 1466*40*90 | 2500lm/25W | 928S.P125W | |
| 2336*40*90 | 4000lm/40W | 928S.P140W | |
| Medium | 1176*40*90 | 2800lm/28W | 928S.P128W |
| 1466*40*90 | 3500lm/35W | 928S.P135W | |
| 2336*40*90 | 5600lm/56W | 928S.P156W |
Material & technology

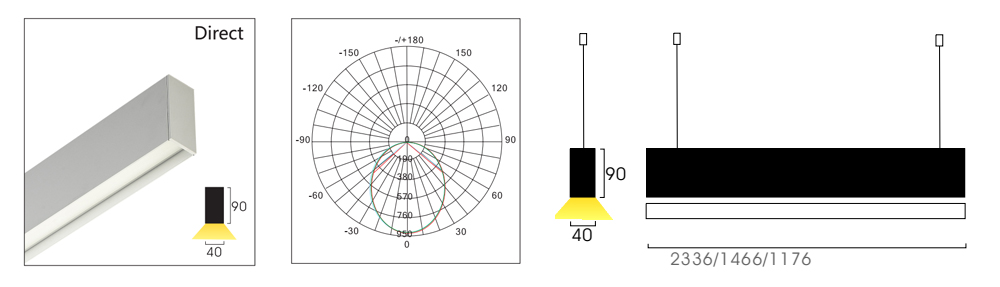

Light distribution：Direct Light /Direct & Indirect light
Light source：High brightness SMD LED
Color rendering：CRI≥80, can customize CRI≥90
CCT：3000K, 4000K, 6500K, can customize 5000K
Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming
Lamp material：High grade anodizing aluminum (6063 Alloy), painted with Pure White can customize other color
Diffuser：Opal prismatic diffuser with high transmittance and uniformity light,LED Module with light angle 48°，or customized34°/12°
End caps material：ABS
IP：20
Connection：The luminaries can be connected with end cap in 180°/90°，the connectors need to be ordered separately.
Installation：S-Suspended, C-Ceiling mounted，R-recessed without trim
